STX Parts

STX Parts

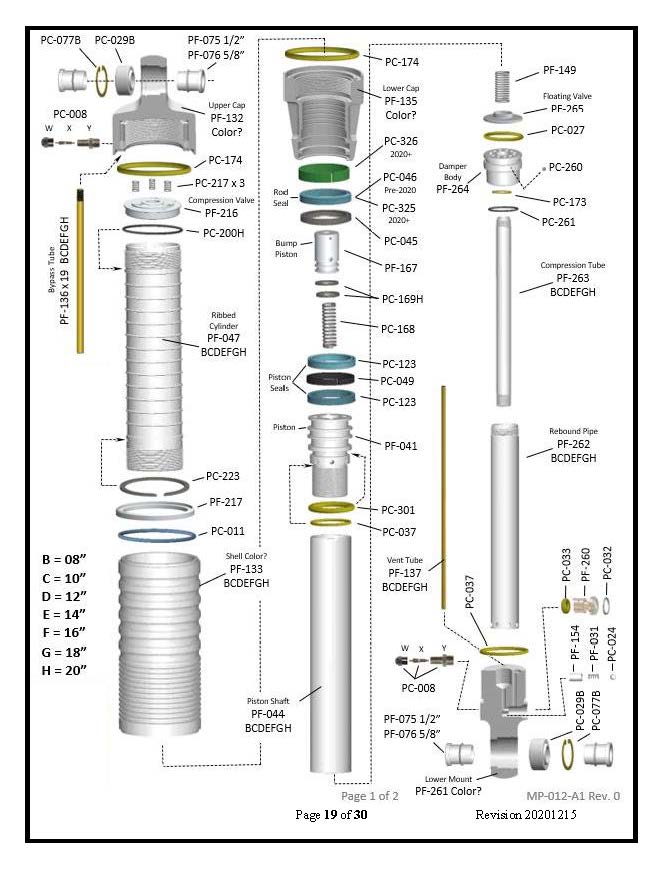

STX Strut exploded-view parts diagram

STX StrutExploded view + part numbersParts Diagram

O-Ring, Shell and Reservoir

O-Ring-232, Shell & Int-Resvor

$4.95

O-Ring, Compression Valve

Compression Valve O-Ring

$1.53

O-Ring, Damper Screw

O-Ring -107, Damper Screw

$1.38

STX Integral Reservoir Shell

$80.00

$26.95

O-Ring, Compression Valve

O-Ring -014, Compression Tube

$1.32

Cylinder Flange

$13.95

Jensen Bros. Offroad

Rebuild Kit, Integral & Remote Reservoirs

$95.50

Damper Body

Damper Body (2016+)

$39.95

Wiper Seal

$7.35

STX Strut Seal Kit

Seal Kit for STX Strut

$89.00

High Pressure Schrader Valve Assembly

Schrader Valve Assembly | Filler Valve Assembly ORI Struts

$6.05

Retaining Ring, Spherical Bearing 1/2″

Retain Ring, Sph Brg 5/8"

$0.50

Q-Ring Bump Piston

Q-Ring (seal for bump piston)

$1.85

$9.95

Bump Piston Return Spring

Sprial Retain Ring, Dmpr Screw

$0.88

Vent Tube, Low Mount

Vent Tubes for Lower Mounts and Reservoirs

$4.95

PF-263 Compression Tube

Compression Tubes

$13.95

O-Ring, Rebound Pipe

O-Ring, 1" Rebound Pipe

$0.75

ORI STX Strut Lower Cap

ORI Strut Lower Cap

$105.50

Jensen Bros. Offroad

Seal Kit, Integral & Remote Reservoirs

$79.50
